When Audi engineers pieced together the images captured by four fisheye lenses into a seamless bird ‘s-eye view, they not only reshaped the driver’s field of vision but also redefined the safety dimension of mid-to-large-sized luxury sedans – every centimeter of blind spot around the vehicle body became a battlefield that technology had to conquer.

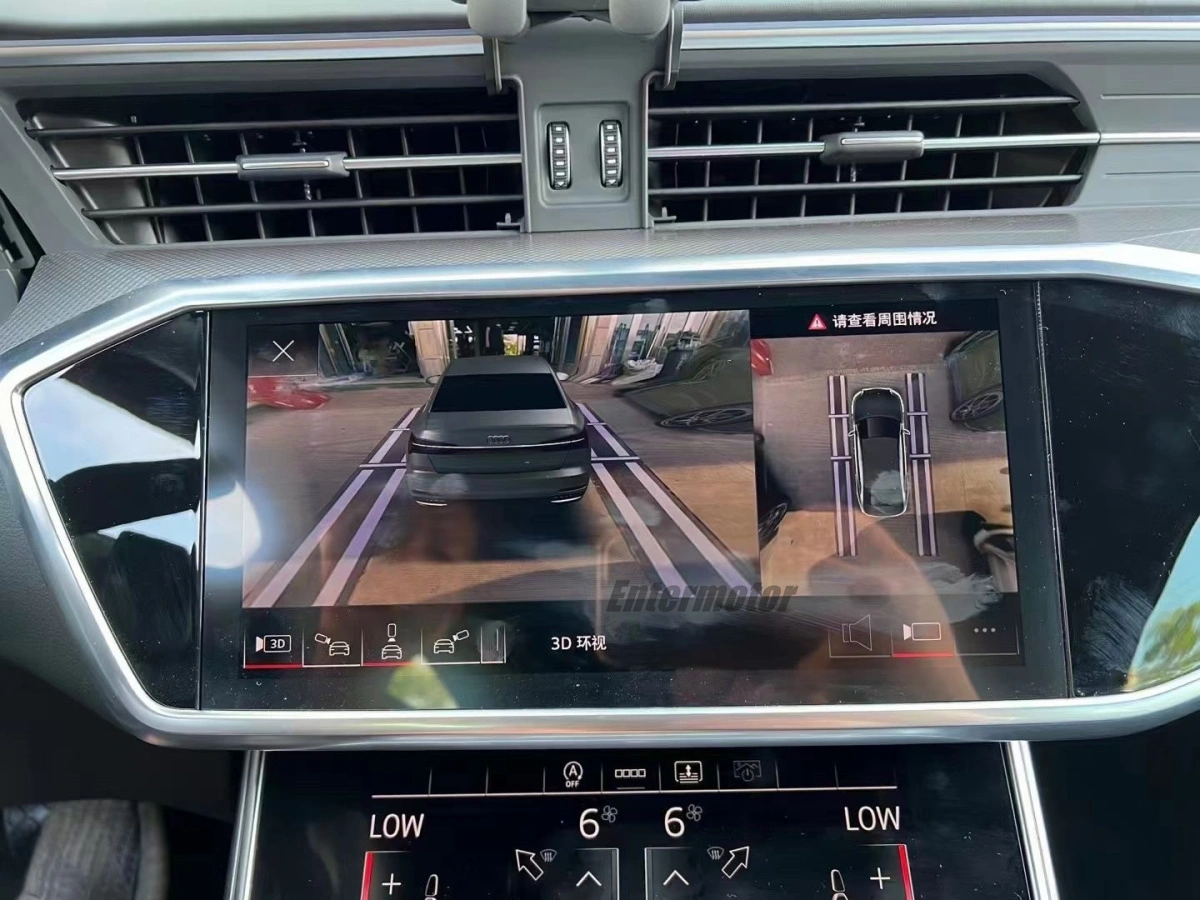

In the underground garage late at night, an Audi A6 slowly reversed back to its position. The driver stared intently at the moving images on the central control screen: obstacles within 0.5 meters around the vehicle body were precisely sketched, and the distance between the tires and the shoulder of the road was displayed in real time with millimeter-level accuracy. This is not a scene from a science fiction movie, but a reality created by the original 360-degree panoramic imaging system of the factory. For the Audi A6 with a body length exceeding 5 meters, the traditional rearview mirror’s field of vision coverage in narrow passages is less than 35%. However, after upgrading to the original factory 360 system, the panoramic field of vision coverage has jumped to 98%, and in combination with Audi’s pre-collision system, it achieves three-dimensional protection.

What is more worthy of attention is that this system has gradually evolved from being exclusive to the top configuration to a security necessity. After 2020, with the popularization of the MLB Evo platform on the C8 generation A6, the installation compatibility of the original 360-degree panoramic view has been significantly improved. Through modular wiring harnesses and preset installation positions, professional modification shops can complete a full upgrade within 4 hours, allowing early models to share the latest safety technology

1,The Terminator of Blind spots: Why does Audi A6 Urgently need 360-degree panoramic Views

1.1 The inherent shortcomings of large-sized vehicle bodies

Fatal blind spot data: The 5.05-meter body of the Audi A6L creates a 1.2-meter visual blind spot at the front and rear, which is exactly within the height range of a child. According to statistics, 63% of low-speed vehicle movement accidents result from blind spot misjudgment, among which the scraping rate of side-direction parking is as high as 27%. When drivers rely solely on the rearview mirror, the error in judging the right front corner of the vehicle generally exceeds 15 centimeters – this is precisely the distance between the barrier post and the car paint.

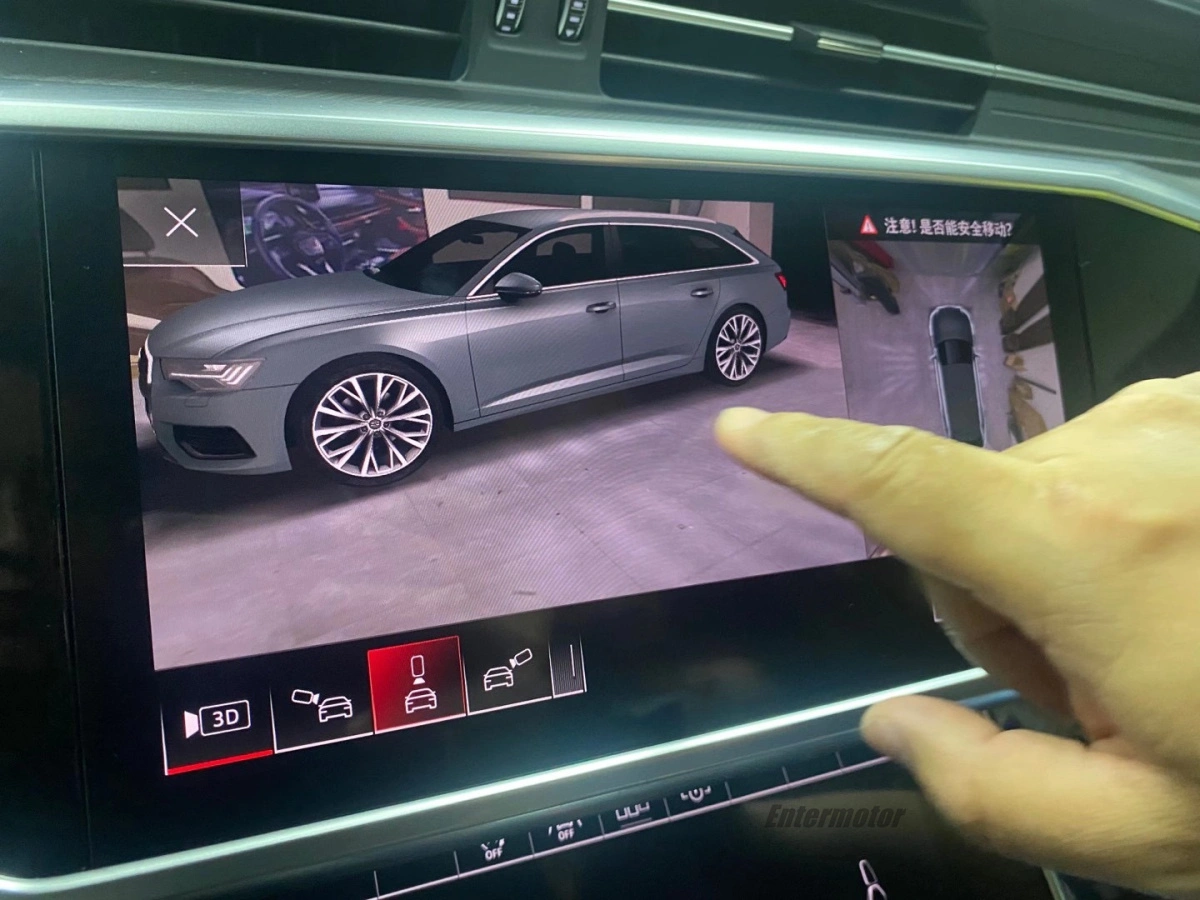

The special predicament of station wagons: Station wagon models such as the A6 allroad, due to the slender front end and the inclined D-pillar design, have a 40% larger blind spot at the forward bend Angle than the sedan version. Many car owners have reported that when parking on a slope, it is difficult to determine the actual distance between the front of the car and the retaining wall merely by radar. However, the overhead bird ‘s-eye view mode of the 360 system can completely solve this pain point

1.2 A Perception Revolution Beyond Traditional Radar

The original factory 360 system is by no means a simple image splicing, but a spatial modeling system that integrates data from multiple sensors. When the radar detects an obstacle, the panoramic image will automatically focus on the risk area and mark the distance:

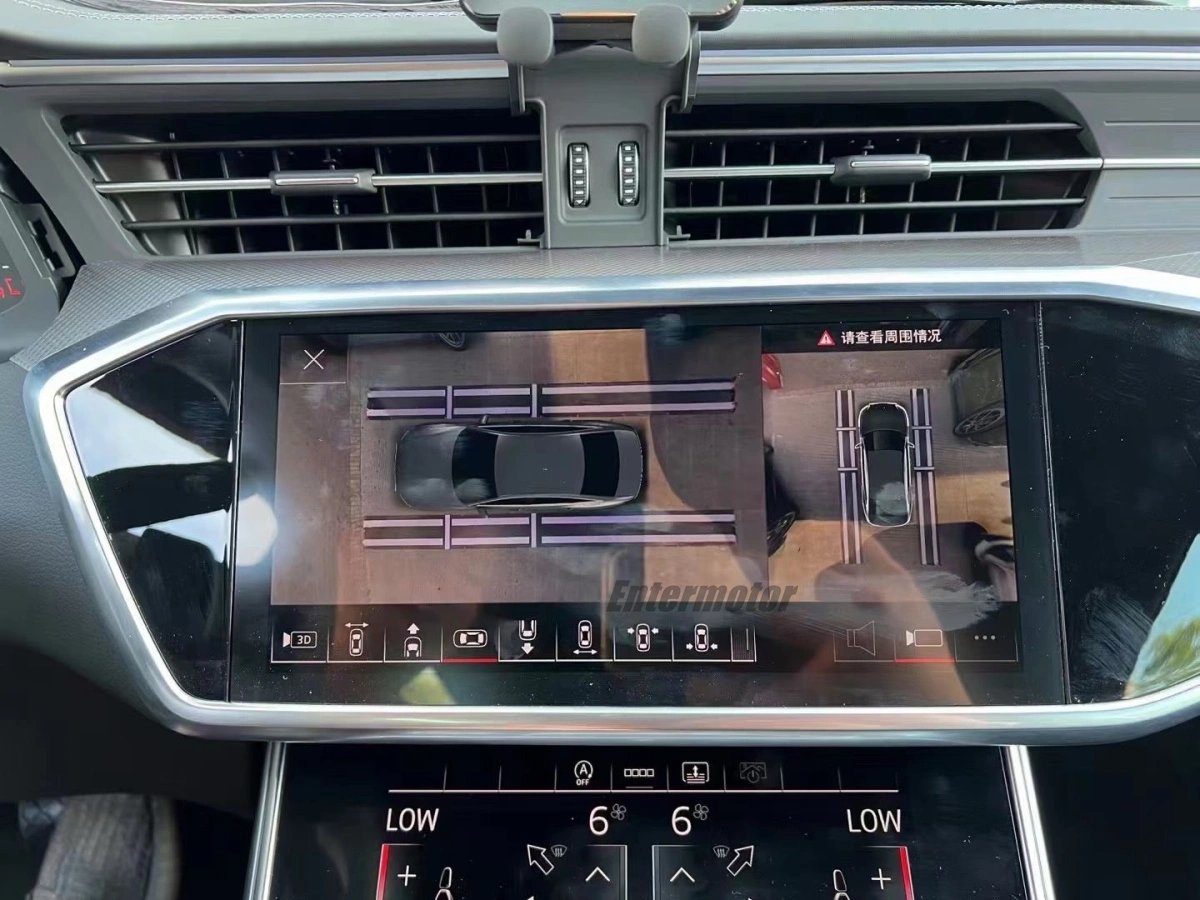

Static obstacle location: In narrow lane mode, the distance between the tire and the shoulder of the road is displayed in real time on both sides of the screen, with an accuracy of ±2 centimeters

Dynamic target tracking: When reversing, if a laterally moving object (such as an electric vehicle) is detected, the system will issue a red trajectory line as a warning

Terrain prediction: Air suspension models can be linked to terrain modes to display the slope Angle in advance

2. Pre-modification diagnosis and component list

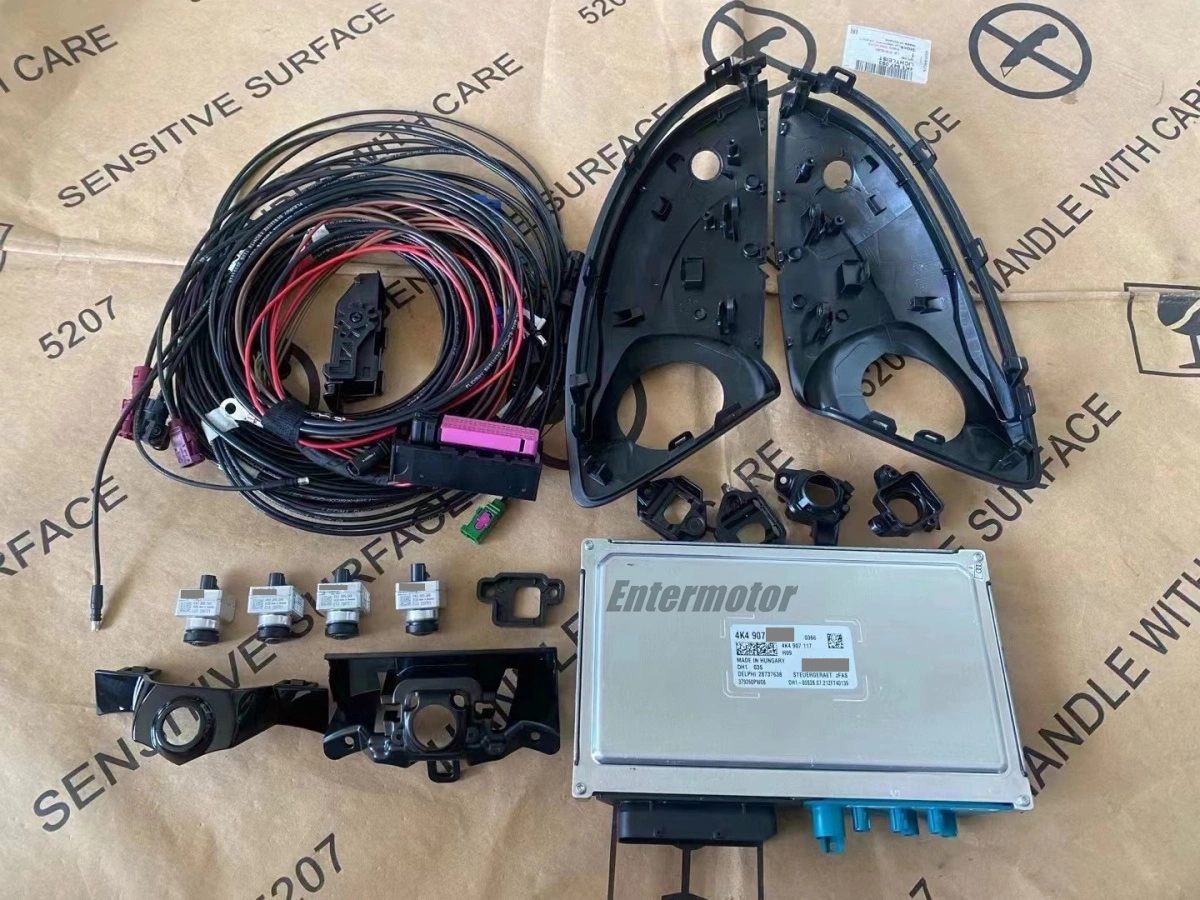

List of core components:

Camera group ×4 (including forward-looking bracket)

Image processing module

Shielded wire harness group (anti-electromagnetic interference twisted pair)

The bottom shell of the rearview mirror (one on each side)

Wiring harness integrity test: The original factory wiring harness package should include CAN bus expansion interfaces

3. Precise construction

Rearview mirror modification

Disassemble the door panel → Replace the original bottom shell of the side rearview mirror of the vehicle → The spring clips need to be pressed and installed with special pliers. Manual operation is prone to breakage

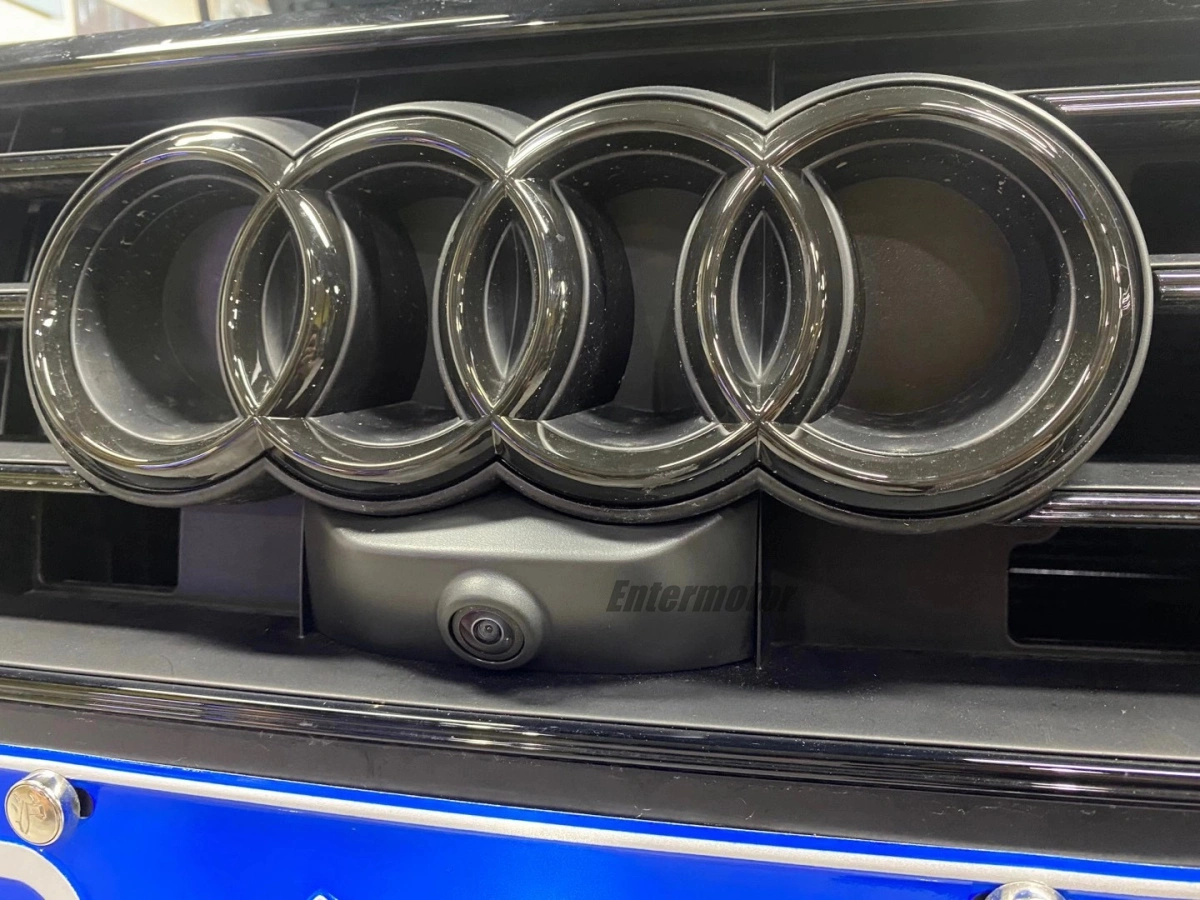

Front-view camera

Remove the front bumper → Install the front-view bracket camera → The wiring harness is routed through the fender to the cockpit

Processor installation:

The 360-degree panoramic module of the C8 generation is placed under the driver’s seat. The foam of the carpet part needs to be removed. It is strictly forbidden to block the heat dissipation holes

Programming code calibration

the shadow of the underground garage is dispelled by the top-down view. When the narrow alley suddenly opens up from the bird ‘s-eye view, the physical boundaries of the Audi A6 have been completely broken by the 360-degree panoramic system. This is not only an upgrade of safety configuration, but also a reconstruction of the driving cognitive system – from now on, every turn and every move is based on an omniscient perspective. True luxury begins with eliminating the unknown.
